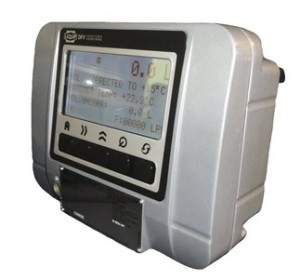

The DFV102 is the latest in Liquip’s range of electronic registers. It will replace the EMH500H and EMH600RP.
During delivery, flowrate, volume delivered, temperature reading and meter number can be displayed. When delivery is finished a delivery report or management ticket can be printed with the press of a button.
Features & Benefits
- Safety Approved for use in Zone 2 (IEC)
- Weights & Measures NMI Approved Australia
- Large display to read flowrate, batch quantity and corrected volumes at the same time
- Backlit display for ease of reading in low light
- Same menu system as EMH 600/500 for ease of operation with operators already familiar with Liquip registers
- Connection to electronic ticket printer
- Electronic calibration
- Non-linearity correction
- Temperature correction
- Non volatile memory for storing set parameters
- Operates on 12 or 24 volt installations
- More intuitive set up and programming
- CAN output for rapid communication with external device
- Piezoelectric buttons for reliability
- Micro SD card for easy software upgrade
- Preset functionality / batch control
- Solenoid outputs are voltage free and can perform a 2 stage ramp up and ramp down of the fluid flow
- Pulse output can be programmed as optional third relay
